DIAPHRAGM / RUBBER BELLOW SEALS

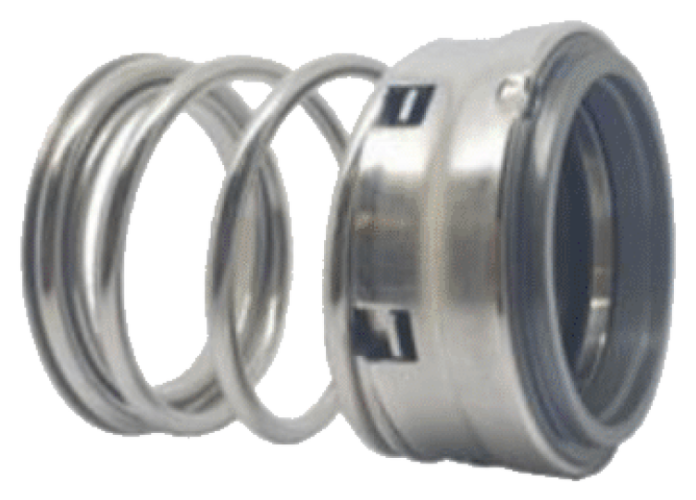

D-1 / D-1A
Rubber Bellow Seal, Non-Pusher, Single Spring Seal
Materials:
Rotary: Car / SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton
Working Conditions:
Pressure: ≤ 28 bar
Speed: ≤ 13 m/s
Temperature: Up to 205°C
D-2
Short Rubber Bellows, Non-Pusher, Single Spring Seal
Materials:
Rotary: Car / SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton
Working Conditions:
Pressure: ≤ 28 bar
Speed: ≤ 13 m/s
Temperature: Up to 205°C
D-4DD
DIN Rubber Diaphragm, Non-Pusher, Single Spring Seal
Materials:
Stationary: Car / SiC / SSiC / TC
Rotary: Car / SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton
Working Conditions:
Pressure: ≤ 8 bar
Speed: ≤ 10 m/s
Temperature: Up to 150°C
D-6A / D-106
Automotive And Swimming Pool Pump Seal
Materials:
Stationary: Car / SiC
Rotary: Car / SiC
Elastomer: NBR / EPDM / Viton
Working Conditions:
Pressure: ≤ 6 bar
Speed: ≤ 10 m/s
Temperature: Up to 150°C
D-21 / D-100 / D-120 / D-200
Rubber Bellow Seal, Non-Pusher, Single Spring Seal
Materials:
Rotary: Car / SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton
Working Conditions:
Pressure: ≤ 8 bar
Speed: ≤ 10 m/s
Temperature: Up to 150°C
D-210 / D-210K / D-210N
Bi-Directional Rubber Bellows Seal
Materials:
Stationary: Car / SiC
Rotary: Car / SiC
Elastomer: NBR / EPDM / Viton
Working Conditions:
Pressure: ≤ 8 bar
Speed: ≤ 10 m/s
Temperature: Up to 150°C
D-502
DIN Rubber Diaphragm, Non-Pusher, Single Spring Seal
Materials:
Stationary: Car / SiC / SSiC / TC
Rotary: Car / SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton
Working Conditions:
Pressure: ≤ 12 bar
Speed: ≤ 12 m/s
Temperature: Up to 150°C
D-BUT
Short Button Seal
Materials:
Stationary: Car / SiC
Rotary: Car / SiC
Elastomer: NBR / EPDM / Viton
Working Conditions:
Pressure: ≤ 5 bar
Speed: ≤ 10 m/s
Temperature: Up to 100°C

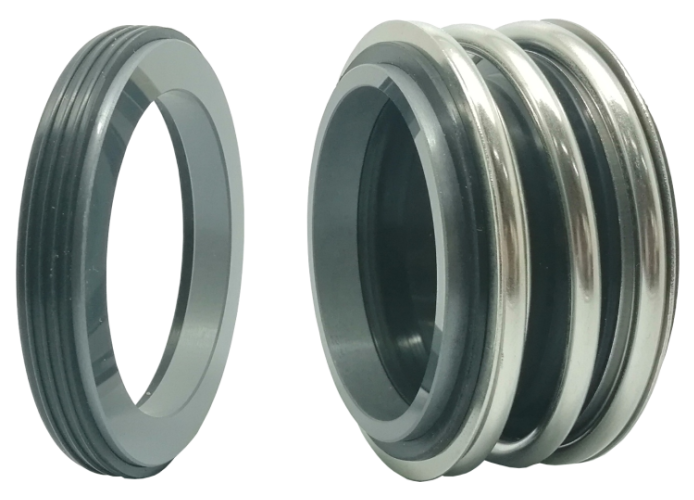

D-MG1 / D-MG12 / D-MG13
DIN Economy Rubber Bellows Seal
Materials:
Stationary: Car / SiC / SSiC / TC
Rotary: Car / SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton
Working Conditions:
Pressure: ≤ 12 bar
Speed: ≤ 12 m/s
Temperature: Up to 150°C
