DOUBLE CARTRIDGE SEALS

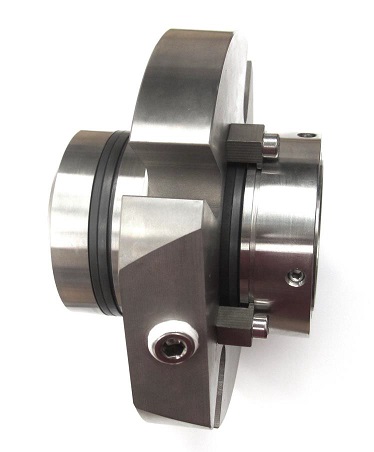

D-241
Stationary design double cartridge seal
Materials:
Stationary: Car / SiC / SSiC / TC
Rotary: SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton / Aflas / FFKM
Working Conditions:
Pressure: ≤ 28 bar
Speed: ≤ 23 m/s
Temperature: Up to 205°C
Features:
Stationary design
Monolithic faces
Cushioned faces
Double pressure balanced
Springs outside of media
Tandem active
Full pressure reversal
Manual venting for installation
D-241C
Bi-metal double cartridge seal
Materials:
Stationary: Car / SiC / SSiC / TC
Rotary: SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton / Aflas / FFKM
Working Conditions:
Pressure: ≤ 28 bar
Speed: ≤ 23 m/s
Temperature: Up to 205°C
Features:
Stationary design
Monolithic faces
Cushioned faces
Double pressure balanced
Springs outside of media
Tandem active
Full pressure reversal
Manual venting for installation
D-242
Double cartridge seal with bi-directional pumping scroll
Materials:
Stationary: Car / SiC / SSiC / TC
Rotary: SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton / Aflas / FFKM
Working Conditions:
Pressure: ≤ 28 bar
Speed: ≤ 23 m/s
Temperature: Up to 205°C
Features:
Stationary design
Monolithic faces
Cushioned faces
Double pressure balanced
Springs outside of media
Tandem active
Full pressure reversal
Manual venting for installation
Bi-directional pumping device
Barrier fluid guide shroud

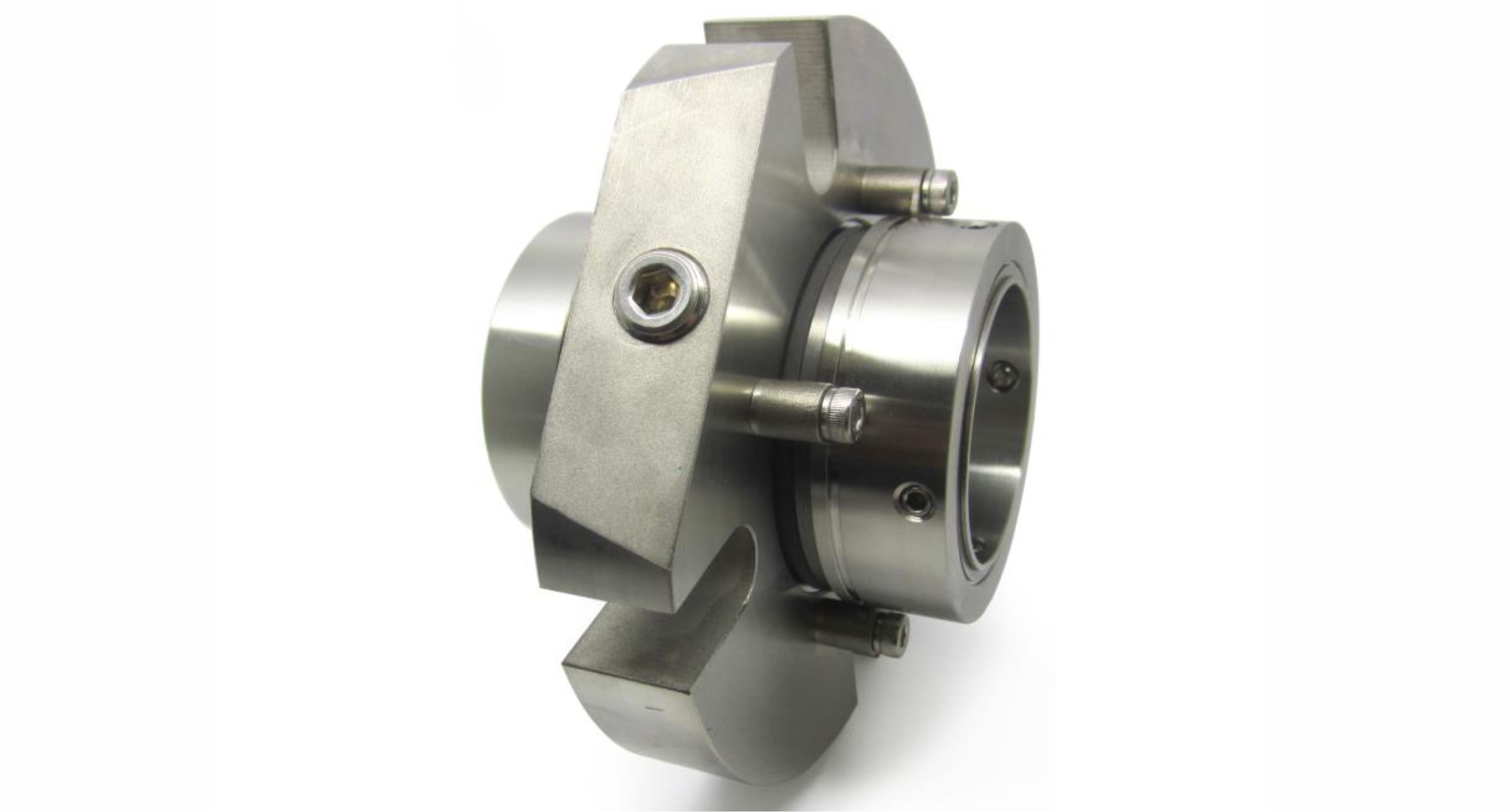

D-243
Larger bore double cartridge seal with bi-directional pumping scroll
Materials:
Stationary: Car / SiC / SSiC / TC
Rotary: SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton / Aflas / FFKM
Working Conditions:
Pressure: ≤ 28 bar
Speed: ≤ 23 m/s
Temperature: Up to 205°C
Features:
Stationary design
Monolithic faces
Cushioned faces
Double pressure balanced
Springs outside of media
Tandem active
Full pressure reversal
Manual venting for installationBi-directional pumping device
Barrier fluid guide shroud

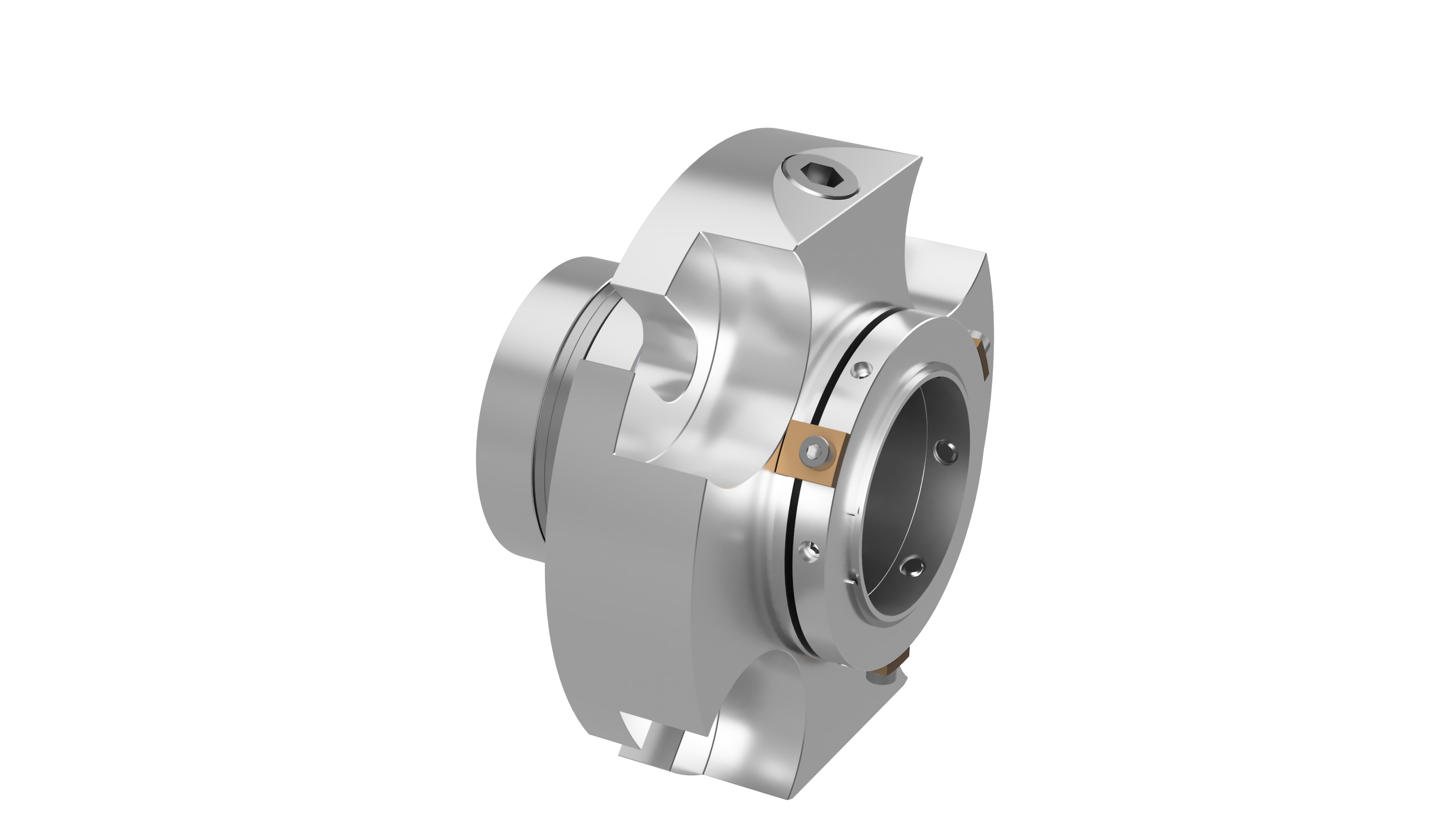

D-245
Tandem design double cartridge seal
Materials:
Stationary: Car / SiC / SSiC / TC
Rotary: SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton / Aflas / FFKM
Working Conditions:
Pressure: ≤ 28 bar
Speed: ≤ 23 m/s
Temperature: Up to 205°C
Features:
Stationary design
Monolithic faces
Cushioned faces
Double pressure balanced
Springs outside of media
Tandem arrangement
Full pressure reversal
Manual-directional pumping device

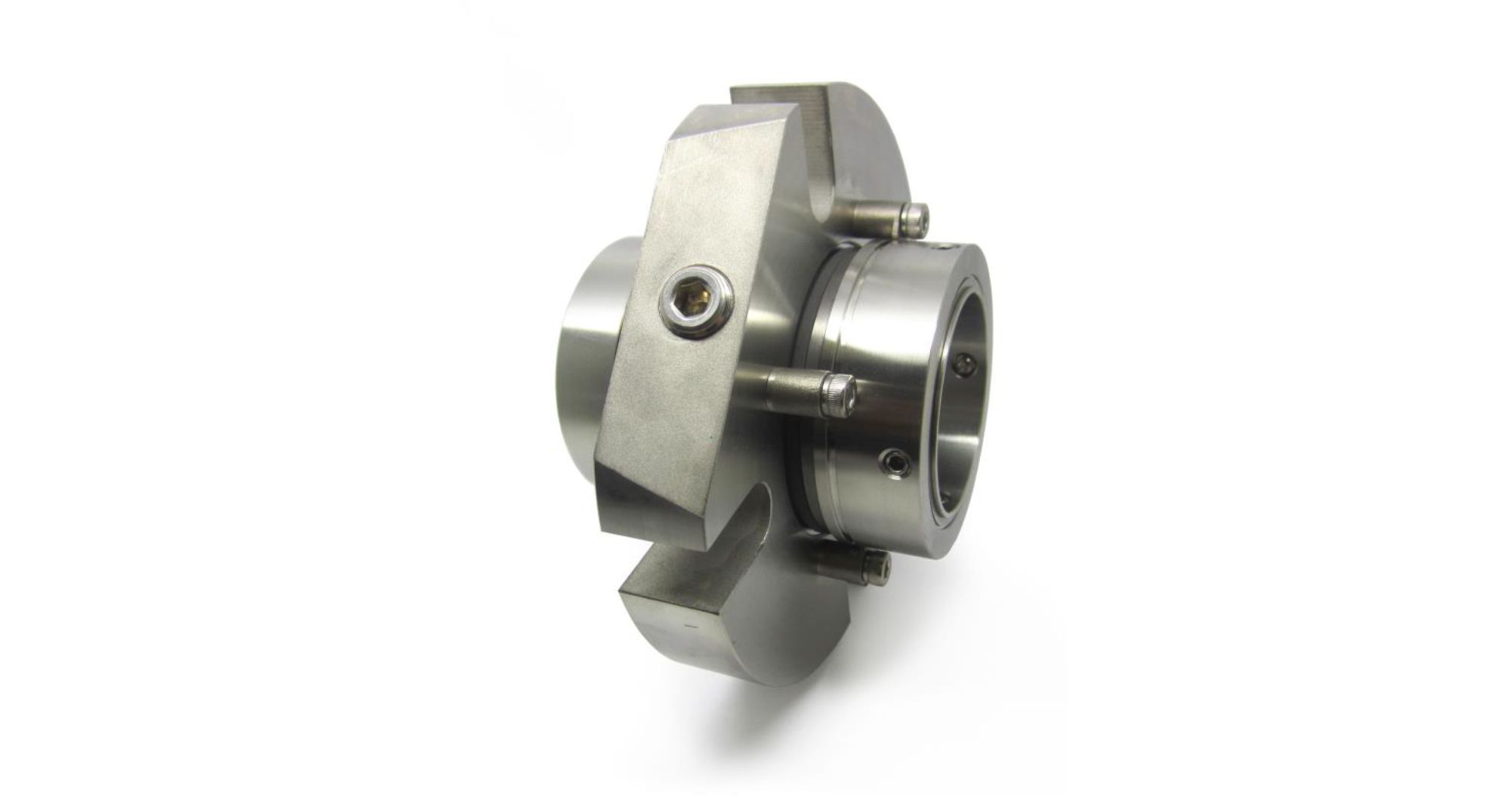

D-272 / D-272+ / D-2725
ANSI Machined Gland Double Seal
Materials:
Stationary: Car / SiC / SSiC / TC
Rotary: SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton / Aflas / FFKM
Working Conditions:
Pressure: ≤ 28 bar
Speed: ≤ 35 m/s
Temperature: Up to 205°C
Features:
Stationary design
Monolithic faces
Cushioned faces
Double pressure balanced
Springs outside of media
Tandem active
Full pressure reversal
Manual venting for installation
Bi-directional pumping device
Barrier fluid guide shroud
