SINGLE CARTRIDGE SEALS
D-111 / D-111Q
Heavy duty single cartridge seal
Materials:
Stationary: Car / SiC / SSiC / TC
Rotary: SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton / Aflas / FFKM
Working Conditions:
Pressure: ≤ 28 bar
Speed: ≤ 25 m/s
Temperature: Up to 205°C
Features:
Stationary design
Monolithic faces
Cushioned faces
Pressure balanced
Springs outside of media

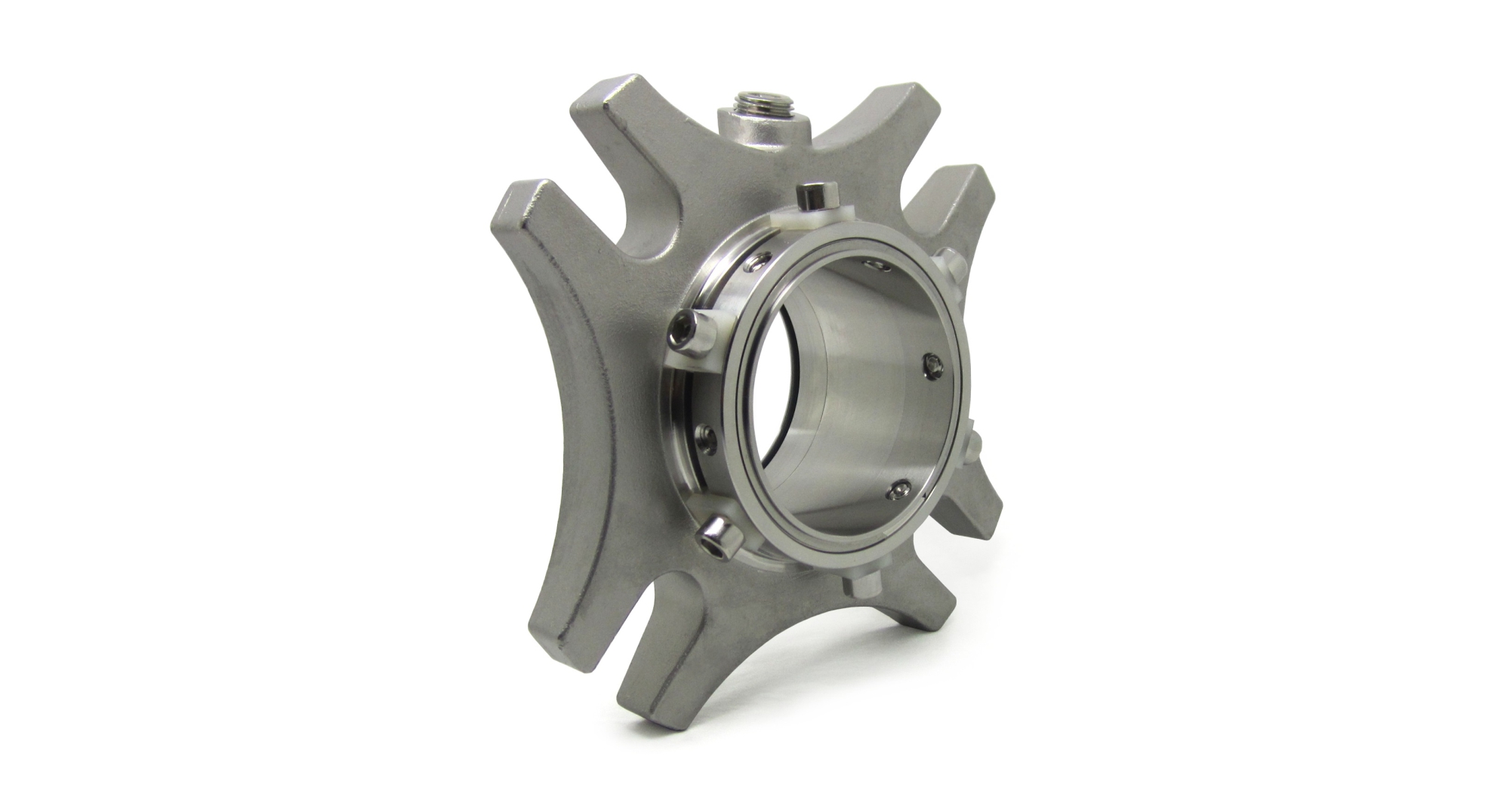

D-141
Cast Gland Single Seal
Materials:
Stationary: Car / SiC / SSiC / TC
Rotary: SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton / Aflas / FFKM
Working Conditions:
Pressure: ≤ 28 bar
Speed: ≤ 25 m/s
Temperature: Up to 205°C
Features:
Stationary design
Monolithic faces
Cushioned faces
Pressure balanced
Springs outside of media

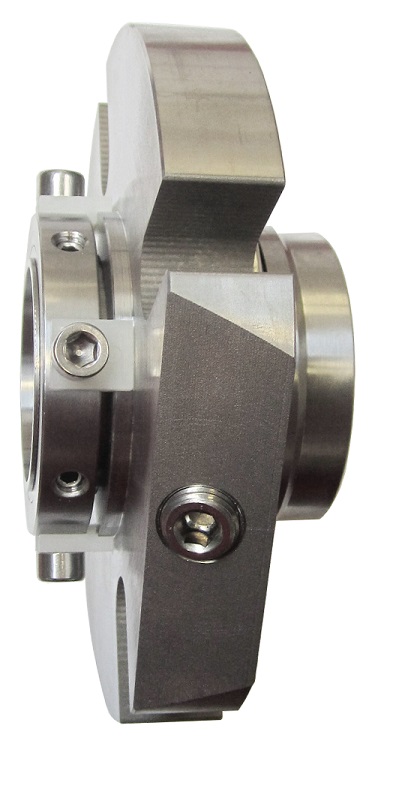

D-145 / D-145Q
Fully machined gland single cartridge seal with quench option
Materials:
Stationary: Car / SiC / SSiC / TC
Rotary: SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton / Aflas / FFKM
Working Conditions:
Pressure: ≤ 28 bar
Speed: ≤ 25 m/s
Temperature: Up to 205°C
Features:
Stationary design
Monolithic faces
Cushioned faces
Pressure balanced
Springs outside of media
D-145+
ANSI Large Bore Single Seal
Materials:
Stationary: Car / SiC / SSiC / TC
Rotary: SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton / Aflas / FFKM
Working Conditions:
Pressure: ≤ 28 bar
Speed: ≤ 25 m/s
Temperature: Up to 205°C
D-145Z / D-145ZQ
Small bore single cartridge seal
Materials:
Stationary: Car / SiC / SSiC / TC
Rotary: SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton / Aflas / FFKM
Working Conditions:
Pressure: ≤ 28 bar
Speed: ≤ 25 m/s
Temperature: Up to 205°C
D-1502
Rubber bellows single cartridge seal
Materials:
Stationary: Car / SiC / SSiC / TC
Rotary: SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton / Aflas / FFKM
Working Conditions:
Pressure: ≤ 28 bar
Speed: ≤ 35 m/s
Temperature: Up to 150°C
D-171
ANSI Cast Gland Single Seal
Materials:
Stationary: Car / SiC / SSiC / TC
Rotary: SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton / Aflas / FFKM
Working Conditions:
Pressure: ≤ 28 bar
Speed: ≤ 25 m/s
Temperature: Up to 205°C
Features:
Stationary design
Monolithic faces
Cushioned faces
Pressure balanced
Springs outside of media
D-175 / D-175Q / D-175+
ANSI Machined Gland Single Seal
Materials:
Stationary: Car / SiC / SSiC / TC
Rotary: SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton / Aflas / FFKM
Working Conditions:
Pressure: ≤ 28 bar
Speed: ≤ 25 m/s
Temperature: Up to 205°C
Features:
Stationary design
Monolithic faces
Cushioned faces
Pressure balanced
Springs outside of media
D-FEM
Single spring single cartridge seal – axial movement
Materials:
Stationary: Car / SiC / SSiC / TC
Rotary: SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton / Aflas / FFKM
Working Conditions:
Pressure: ≤ 21 bar
Speed: ≤ 25 m/s
Temperature: Up to 205°C
Features:
Stationary design
Monolithic faces
Cushioned faces
Pressure balanced
Springs outside of media
Single spring
Heavy duty drive
Extreme axial motion

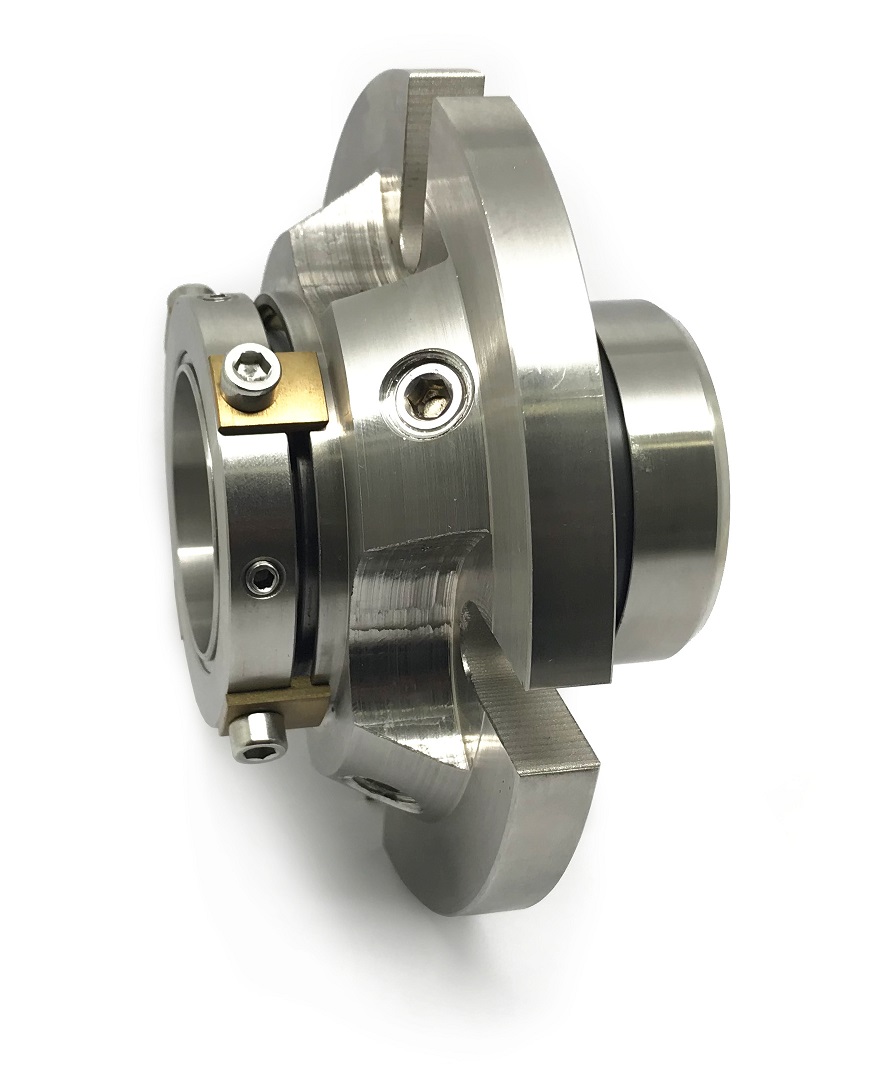

D-FET
Robust single spring single cartridge seal.
Materials:
Stationary: Car / SiC / SSiC / TC
Rotary: SiC / SSiC / TC
Elastomer: NBR / EPDM / Viton / Aflas / FFKM
Working Conditions:
Pressure: ≤ 21 bar
Speed: ≤ 25 m/s
Temperature: Up to 205°C
Features:
Stationary design
Monolithic faces
Cushioned faces
Pressure balanced
Springs outside of media
Single spring
Heavy duty drive

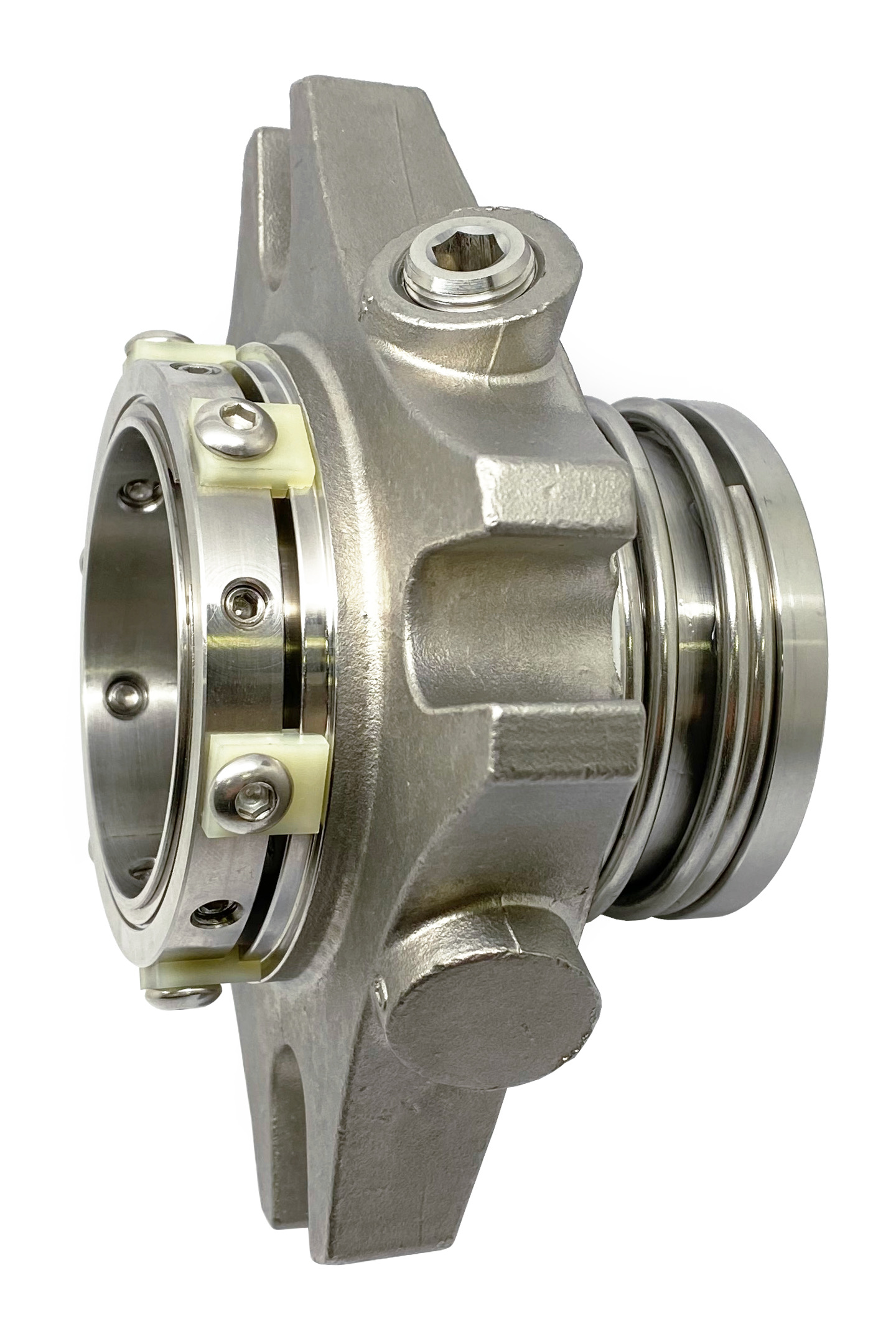

D-UTEX
Single spring rubber bellows cartridge seal
Materials:
Stationary: Car / SiC / SSiC / TC
Rotary: SiC / SSiC / TC
Elastomer: EPDM / Viton
Working Conditions:
Pressure: ≤ 12 bar
Speed: ≤ 13 m/s
Temperature: Up to 105°C
Features:
Cushioned faces
Non-pusher design
±1.5mm axial movement
